| Type | Foam Cutting Machine |
| Power | 6kw |
| Rated Power | 6kw |
| Dimensions | W2000mm*L2000mm |
| Voltage | 3phase 380v 50hz |
| No-Load Rotational Speed | 0-20m/min |
| Certification | ISO2000 |
| Application | Foam Industry, Sponge Industry, Furniture Industry |
| Supply Ability | 15 Sets Per Month |
Products Name:

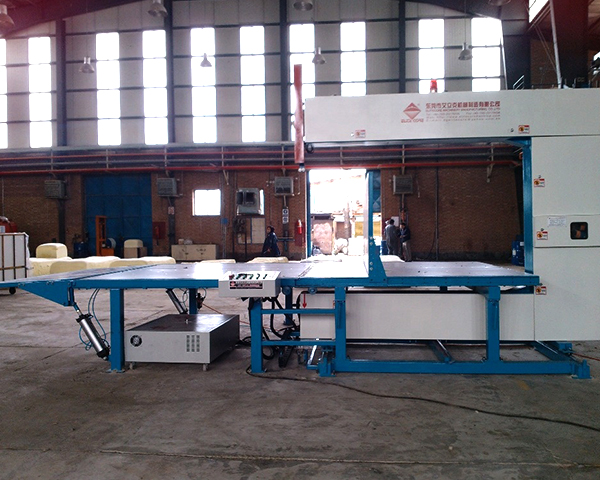

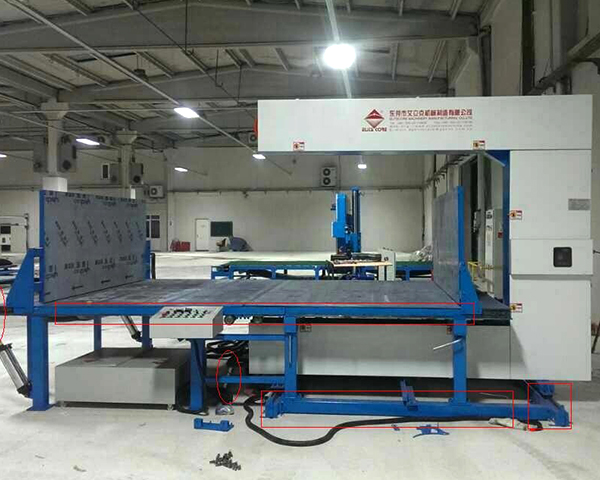

Fully-auto Vertical Foam Cutting Machine
Features:
Fully automatic type.
Adopts PLC programmed for foam sheets cutting.
|
Inner Table Size: |
W2150mm*L2440mm |
|
Outer Table Size: |
W2150mm*L2440mm |
|
Cutting Foam Size: |
W2100mm*L2400mm |
|
Cutting Foam Height: |
H1200mm |
|
Cutting Thickness: |
3~100mm |
|
Blade Length: |
L9720mm*W30mm*T0.45mm |
|
Baffle Travel Distance: |
W2050mm |
|
Baffle Moving Speed: |
0~10m/min |
|
Cutter Frame Moving Speed: |
0~30m/min |
|
Blade Tension System: |
Choose Available |
|
Machine N.W: |
2200kg |
|
Total Motor Power: |
7.09kw |
|
Floor Space: |
L3700mm*W5700mm*H2900mm |
