| Type | Sponge Cutting Machine |
| Power | 6.22kw |
| Rated Power | 6kw |
| Dimensions | W2150mm*L3000mm |
| Voltage | 3phase 380v 50hz |
| No-Load Rotational Speed | 0-15m/hr |
| Certification | CE |
| Application | Foam Industry, Sponge Industry |
| Supply Ability | 20 Sets Per Month |
Products Name:
CNC Contour Sponge Cutting Machine
Features:
CNC foam contour cutting machine(wire type), computerized.
Adopts wire cutting type & matched with press plate device.

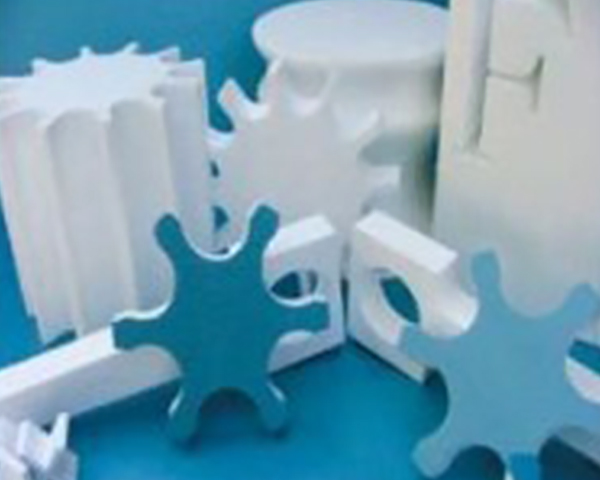

Special used for 2D/3D contour shapes cutting for foam blocks PU, rebonded foam/rigid foam, PE, PVC, etc.
|
Cutting Foam Size: |
W2200mm*L2200mm |
|
Cutting Foam Height: |
H1200mm |
|
Cutting Foam Density: |
≥50kg/CBM(+0.03-0.05mm) |
|
Cutting Speed: |
0~15m/min |
|
Table Moving Speed: |
0~20m/min |
|
Table Moving Type: |
180D Rotatory Or Go And Back (To Be Requested) |
|
Press Plate Device: |
One Set. |
|
Blade Length: |
L9660mm*Dia1.5mm |
|
Control Type: |
Computerized |
|
Knife Tension System: |
Available |
|
Machine N.W: |
2300kg |
|
Total Motor Power: |
8.9kw |
|
Floor Space: |
L5800mm*W3000mm*H2400mm |
