Circular Foam Cutting Machine

Circular Foam Cutting Machine

Automatic Carrousel Foam Splitting Machine with Vacuum

Type  Foam Cutting Machine
Rated Power  11.92kw
Dimensions  L11.5m*W11m*H2.4m
Voltage  3phase 380v/220v 50hz/60hz
No-Load Rotational Speed  1~10m/min
Certification  CE
Application  Foam Industry, Sponge Industry, Furniture Industry
Supply Ability  1 Set Per Month
Contact us
Products Description

Products Name:

Automatic Carrousel Foam Splitting Machine with Vacuum

Features:

PU Foam Cutting Machine eliminated the reciprocating action and reverse movement of horizontal cutting machine.

The cutting thickness can be pre-set from the control box in steps of 1/100mm. The cutting angle of the knife guidance can be adjusted in the range 0o - 5o by means of a hand wheel.

A D.C. motor with smooth start and soft braking drives the table. The Turning Speed of the table is infinitely adjustable.

As customers requirement, we also can design with a Vacuum System available in the cutting area to prevent the movement of blocks during cutting.

Application:

Foam industry, sponge industry, furniture industry, sofe factory, furniture factory, and shoes factory.

Specifications


Type 1

Type 2

Type 3

Cutting Foam Size:

W1500mm*L2000mm(4pcs)

W1500mm*L2000mm(5pcs)

W1500mm*L2000mm(8pcs)

W2150mm*L3000mm(3pcs)

W2150mm*L4500mm(3pcs)

Cutting Foam Height:

H1200mm

H1200mm

H1200mm

Cutting Thickness:

2mm Up

2mm Up

2mm Up

Cutting Speed:

0~3.5rpm(Adjustable)

0~3.5rpm(Adjustable)

0~3.5rpm(Adjustable)

Blade Length:

L8940mm

L10000mm

L10240mm

Cutting Type:

Automatic

Automatic

Automatic

Vacuum System:

Choose Available

Choose Available

Choose Available

Blade Tension System:

Choose Available

Choose Available

Choose Available

Work Table Size:

Dia6000mm

Dia7mm

Dia10.5m

Machine N.W:

3300kg

3500kg

3800kg

Total Motor Power:

7.94kw

8.92kw

10.52kw

Floor Space:

L7500mm*W6000mm*H2400mm

L7500mm*W6000mm*H2400mm

L11.5m*W11m*H2400mm

Products Display

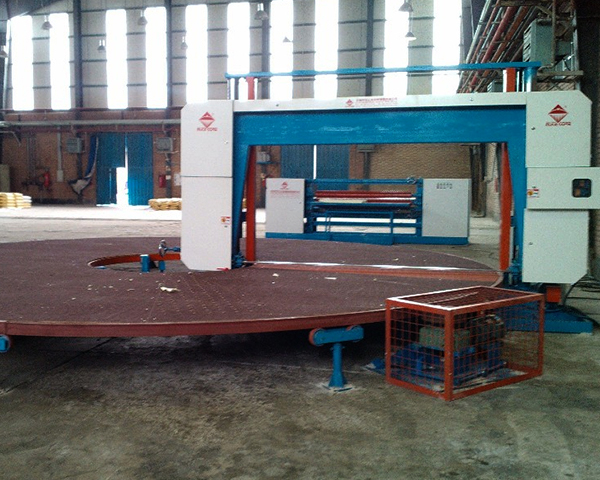

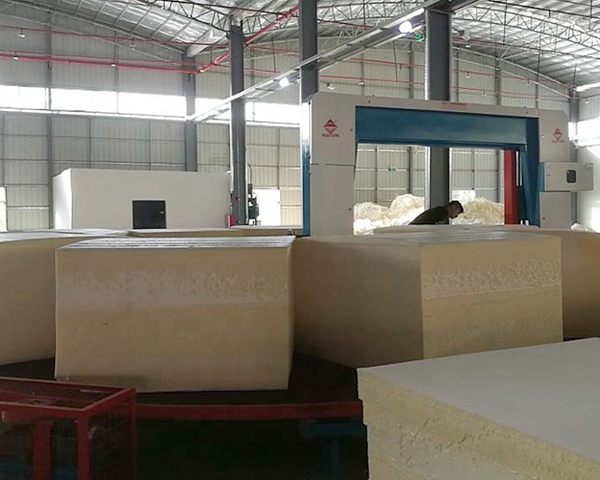

Foam Splitting Machine with Vacuum

Foam Splitting Machine with Vacuum

Foam Splitting Machine with Vacuum

Foam Splitting Machine with Vacuum
