| Type | Foam Cutting Machine |
| Rated Power | 8.92kw |
| Dimensions | W1500mm*L2000mm(5pcs) |
| Voltage | 3phase 380v 50hz |
| No-Load Rotational Speed | 0-3.5rpm |
| Certification | CE |
| Application | Foam Industry, Sponge Industry, Furniture Industry |
| Supply Ability | 30 Sets Per Month |
Products Name:

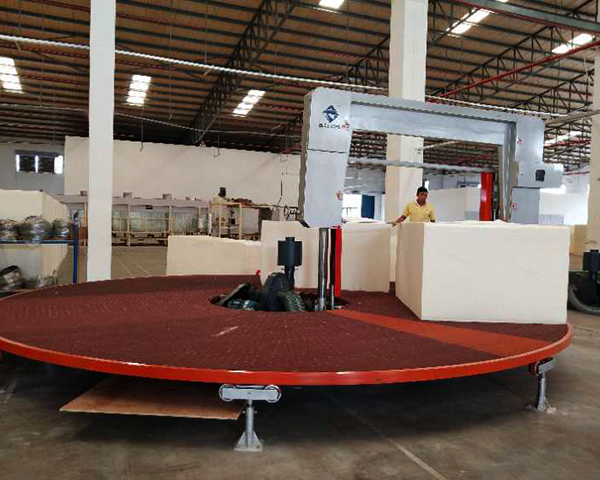

Circular Foam Cutting Machine
Features:
PU Foam Cutting Machine eliminated the reciprocating action and reverse movement of horizontal cutting machine.
The cutting thickness can be pre-set from the control box in steps of 1/100mm. The cutting angle of the knife guidance can be adjusted in the range 0o - 5o by means of a hand wheel.
A D.C. motor with smooth start and soft braking drives the table. The Turning Speed of the table is infinitely adjustable.
As customers requirement, we also can design with a Vacuum System available in the cutting area to prevent the movement of blocks during cutting.
|
Type 1 |
Type 2 |
Type 3 |
|
|
Cutting Foam Size: |
W1500mm*L2000mm(4pcs) |
W1500mm*L2000mm(5pcs) |
W1500mm*L2000mm(8pcs) |
|
W2150mm*L3000mm(3pcs) |
W2150mm*L4500mm(3pcs) |
||
|
Cutting Foam Height: |
H1200mm |
H1200mm |
H1200mm |
|
Cutting Thickness: |
2mm Up |
2mm Up |
2mm Up |
|
Cutting Speed: |
0~3.5rpm(Adjustable) |
0~3.5rpm(Adjustable) |
0~3.5rpm(Adjustable) |
|
Blade Length: |
L8940mm |
L10000mm |
L10240mm |
|
Cutting Type: |
Automatic |
Automatic |
Automatic |
|
Vacuum System: |
Choose Available |
Choose Available |
Choose Available |
|
Blade Tension System: |
Choose Available |
Choose Available |
Choose Available |
|
Work Table Size: |
Dia6000mm |
Dia7mm |
Dia10.5m |
|
Machine N.W: |
3300kg |
3500kg |
3800kg |
|
Total Motor Power: |
7.94kw |
8.92kw |
10.52kw |
|
Floor Space: |
L7500mm*W6000mm*H2400mm |
L7500mm*W6000mm*H2400mm |
L11.5m*W11m*H2400mm |
