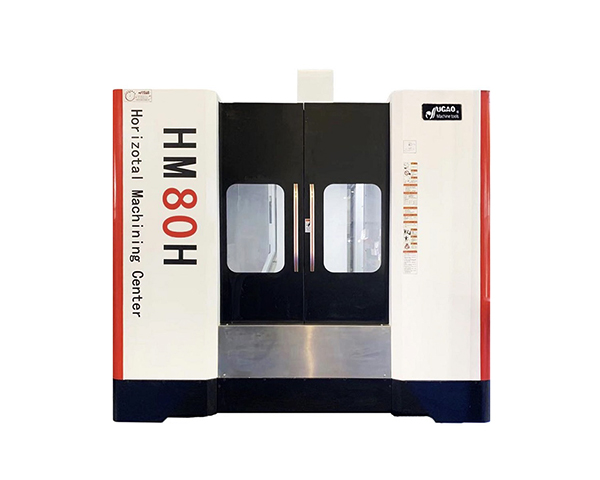

"⊥" structure, traveling columns, wide span, high rigidity and tensility design. Automatic worktable and tool change. Multi processes of milling, drilling, boring, threading, reaming and countersinking could be finished for four sides with one mount. Modern machine control concept and impact structure design assure working process with high efficiency and accuracy. Recommend for cubic parts.
|
Parameters |
Unit |
HM80H |
|
Control system |
|
FANUC OI-MF β |
|
Travel |
|
|
|
X axis |
mm |
1000 |
|
Y axis |
mm |
850 |
|
Z axis |
mm |
900 |
|
Spindle nose to working table |
mm |
200-1100 |
|
Spindle center to table surface |
mm |
120-970 |
|
Working table |
|
|
|
Size |
mm |
800*800 |
|
Max loading |
Kg |
1500 |
|
T slot (size*slots*gap) |
mm |
22*160*5 |
|
Spindle |
|
|
|
Spindle taper |
# |
BT50 |
|
Speed |
r.p.m |
6000 (optional 8000) |
|
Spindle motor |
kw |
15/18.5(20.4)(30min) |
|
Spindle torque |
N.m |
143/236 |
|
Feed |
|
|
|
Three axis rapid traverse speed |
mm/min |
24000 |
|
Three-axis feed rate |
mm/min |
1-10000 |
|
Tool magazine |
|
|
|
Tool magazine type |
|
chain type |
|
Capacity |
pcs |
24/30 (opt) |
|
Max tool diameter |
mm |
φ230/φ115 |
|
Max tool length |
mm |
350 |
|
Max tool weight |
kg |
15 |
|
other |
|
|
|
Positioning |
mm |
0.012 |
|
Repeat positioning |
mm |
0.008 |
|
Air pressure |
MPa |
0.6-0.8 |
|
Power supply |
|
3/PE,AC380V,50Hz |
|
Required power |
KVA |
35 |
|
External size |
mm |
5000*2900*2800 |
|
Machine weight |
Kg |
16500 |
