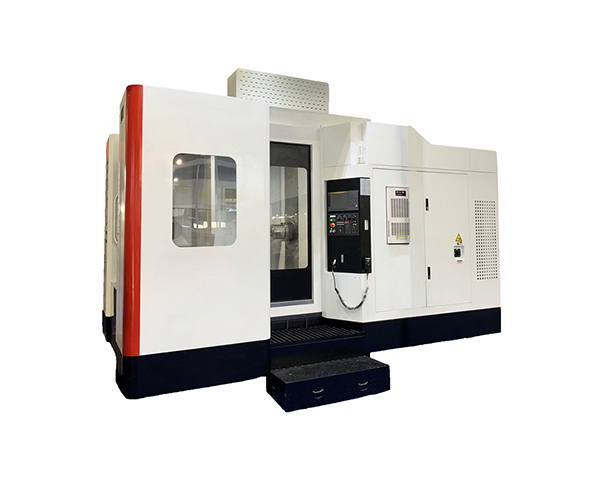

"⊥" structure, traveling columns, wide span, high rigidity and tensility design. Automatic worktable and tool change. Multi processes of milling, drilling, boring, threading, reaming and countersinking could be finished for four sides with one mount. Modern machine control concept and impact structure design assure working process with high efficiency and accuracy. Recommend for cubic parts.
High rigidity and high tensility
-Z axis adopt traveling column structure design to eliminate overhangs that my occur under heavy load machining.
-The span of guideway is 660mm, it can finish high accuracy machining work in any kinds of situation.
-The thermally symmetric structure minimizes thermal deformation and ensures accurate machining.
Helix chip conveyor
-Four helix chip conveyors along Y and X axis remove chips quickly to protect the machine from thermal deformation.
-The helix is tightly connected to the water tank to avoid the coolant splashing out of the tank.
-The separate design of the water tank and the bed realizes the timely and rapid discharge of chips and coolant and minimizes thermal deformation, ensuring high-precision machining.
High speed and high stable
-HM63H has the max travel compared with other same machines, X axis travel 1000mm, Y axis 850mm and Z axis 900mm, the design of 500mm diameter of hirth coupling provides maximum stability.
-24/min rapid speed reduce the non-cutting time, and improve the production efficiency.
The core components
-Imported German ZF retarder, taking care of high speed and low speed with higher torque.
-Imported spindle, screw, guide rail and bearings which are high precision and high stable.
|
Parameters |
Unit |
HM63H |
|
Control system |
|
FANUC OI-MF β |
|
Travel |
|
|
|
X axis |
mm |
1000 |
|
Y axis |
mm |
850 |
|
Z axis |
mm |
900 |
|
Spindle nose to working table |
mm |
200-1100 |
|
Spindle center to table surface |
mm |
120-970 |
|
Working table |
|
|
|
Size |
mm |
630*630 |
|
Max loading |
Kg |
1200 |
|
T slot (size*slots*gap) |
mm |
18*125*5 |
|
Spindle |
|
|
|
Spindle taper |
# |
BT40 |
|
Speed |
r.p.m |
6000 (optional 8000) |
|
Spindle motor |
kw |
15/18.5(20.4)(30min) |
|
Spindle torque |
N.m |
143/236 |
|
Feed |
|
|
|
Three axis rapid traverse speed |
mm/min |
24000 |
|
Three-axis feed rate |
mm/min |
1-10000 |
|
Tool magazine |
|
|
|
Tool magazine type |
|
arm type/chain type (opt) |
|
Capacity |
pcs |
24/30 (opt) |
|
Max tool diameter |
mm |
φ230/φ115 |
|
Max tool length |
mm |
350 |
|
Max tool weight |
kg |
15 |
|
other |
|
|
|
Positioning |
mm |
0.012 |
|
Repeat positioning |
mm |
0.008 |
|
Air pressure |
MPa |
0.6-0.8 |
|
Power supply |
|
3/PE,AC380V,50Hz |
|
Required power |
KVA |
35 |
|
External size |
mm |
5000*3200*4200 |
|
Machine weight |
Kg |
14500 |
