CNC Drilling & Tapping Center TC-540

CNC Drilling & Tapping Centers feature a small footprint. Ultra-compact High-Speed CNC Tapping Center. 12,000 to 24000 RPM BT30 spindle which can rigid tapping at 6,000 RPM.

Contact us
Specifications

Technical parameters

unit

TC-640

Travel





X axis

mm

500

Y axis

mm

400

Z axis

mm

300

Spindle nose to the table

mm

150-450

Spindle center to the column

mm

450

Working table





size

mm

650*400

T slot(size*slots*gap)

mm

14*3*120

Max loading

kg

300

spindle





Spindle taper

#

BT30-100

Speed

r.p.m

20000

Transmission

#

Direct type

Feed





Cutting feed

m/min

10/10/10

Rapid feed

m/min

48/48/48

Accuracy





Positioning

mm

±0.005/300

Repeat positioning

mm

±0.003/300

Tool magazine





Tools

Pcs

16/21

Max tool weight

Kg

3

Max tool length

mm

200

Tool diameter(full load/without adjacent tool)

mm

60/80

Tool magazine type

#

Insert arm type

Motor





Spindle motor power

Kw

5.5

X/Y/Z motor power

Kw

1.5/1.5/2.2

Screw/guide rail





Screw diameter×thread pitch

mm

32×20/20/16

Linear guideway width

mm

X:30/Y:30/Z:35

other





Air pressure

Kgf/cm2

6.5

Water-tank capacity

L

160

Net weight

Kg

3200

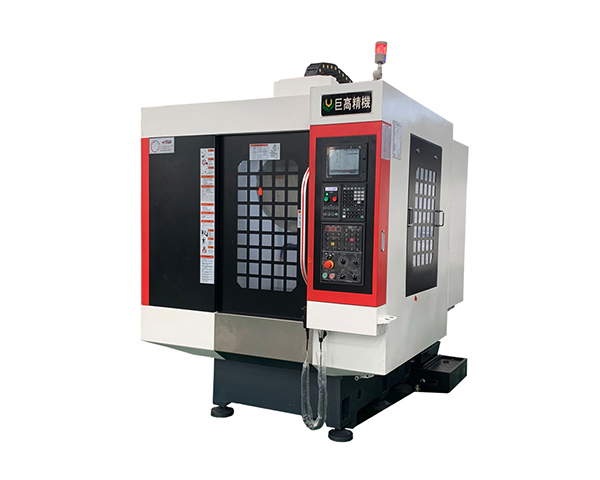

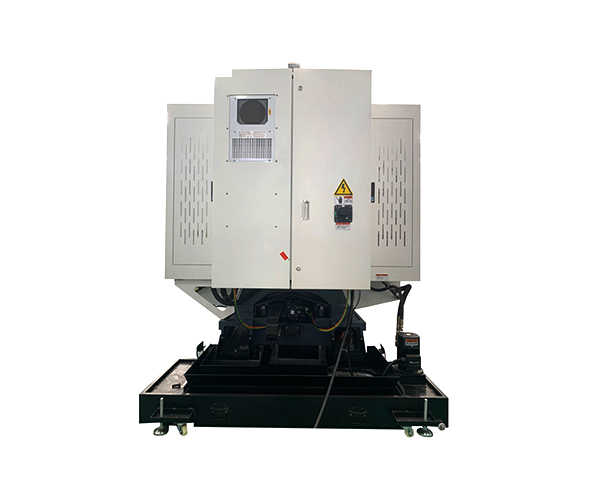

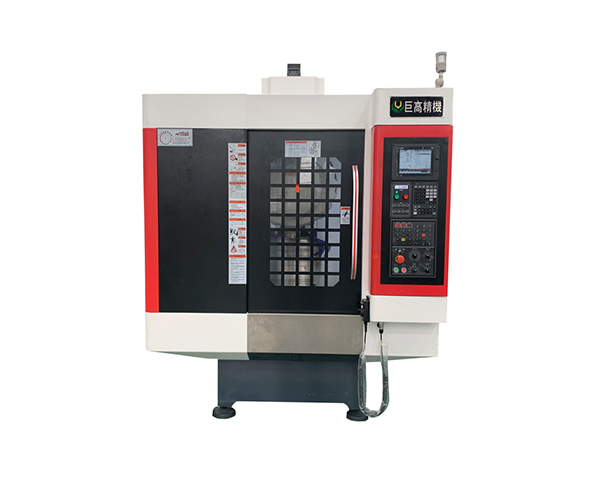

Products Display

TC540

TC540

TC540

TC540

TC540
