Chair Durability Tester

Chair Durability Tester

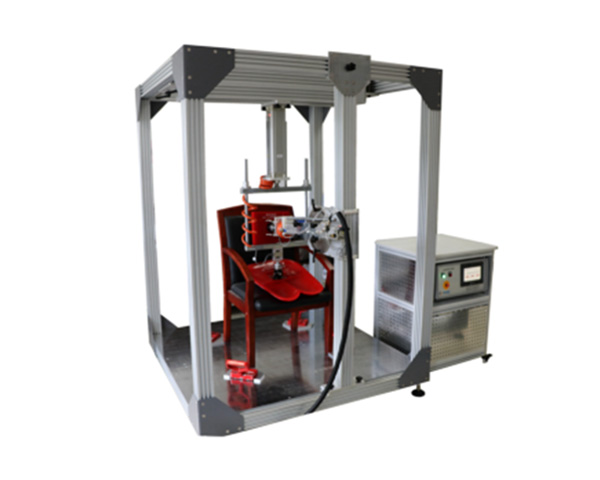

Office Chair Seat and Back Durability Tester

Size 140x140x200cm
Power 1∮AC 220V 50Hz 5A,3KW

Test Speed

10~30 cycles per minute (adjustable)

Contact us
Products Description

Products Name:

Office Chair Seat and Back Durability Tester

Application:

Office Chair Seat and Back Durability Tester is used for testing the strength and durability of office chair. Made of Aluminum material frame, PLC contral, easy operation; high precision force sensor for the load application.

Specifications

Loading Sensor

2500N (2nos) and 1000N (2nos) (or specified by customer)

Load force solution

1/10000

System test force accuracy

±1%(static) ; ±5%(dynamic)

Loading cycle

0~999999 adjustable

Control method

Microcomputer automatism servo control

Loading method

Pneumatic linear actuator

Loading power

Motor

Specimen test station

1

Test independence

Independent control by each work station

Setting

Computer software setting

Data storage

RAM and U disc

Test report

Make the report on computer as request

Loading force adjustment

Air pressure adjustment

Motion control

PLC control

Backrest loading height

Manual adjustment

Air source

6kgf/cm^2 or above(supplied by customer themselves)

Accessories

Seat loading pad 1 set; Back loading pad 1set; Stationary fixture 1 set.

Products Display

Chair Durability Tester

Chair Durability Tester

Chair Durability Tester

Chair Durability Tester

Chair Durability Tester

Chair Durability Tester
