Chair Durability Tester

Chair Durability Tester

Chair Backrest Backward Durability Testing Equipment

Power 220VAC 0.5A
Test Speed 30 cycles/min
Contact us
Products Description

Products Name:

Chair Backrest Backward Durability Testing Equipment

Application:

Chair Backrest Backward Durability Testing equipment  is suitable to all chairs with backward function. It is used for evaluating the durability of the chair with backward function under the loading status.

Test goal: Appraises all office chair seat back cushion to have the caster function chair to have under the state of loading durable ability.

Test object: All office chairs with back backward function.

Test result: Testing Loss of function after the test shall not be qualified (based on customer specified requirements can be judged).

Results evaluation: No loss of function after the test.

Specifications

Load method

Air cylinder(the travel of extend and retraction can be adjustable)

Air cylinder travel

Cylinder diameter of 50mm, travel of 300mm

Control mode

PLC text display

Loading cycles

0~99999 cycles adjustable

Air source

6kgf/cm^2 or above stable gas

Products Display

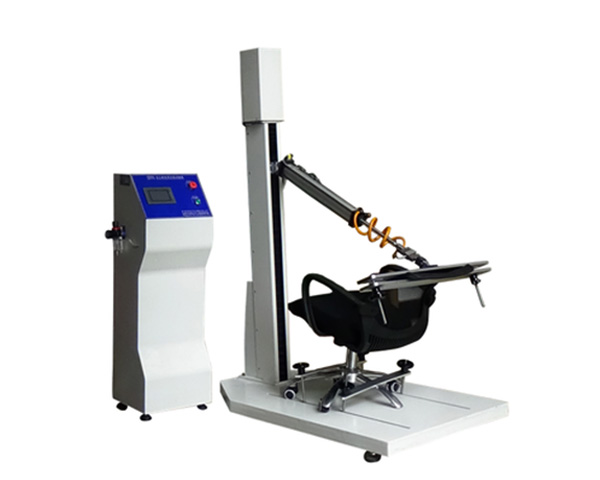

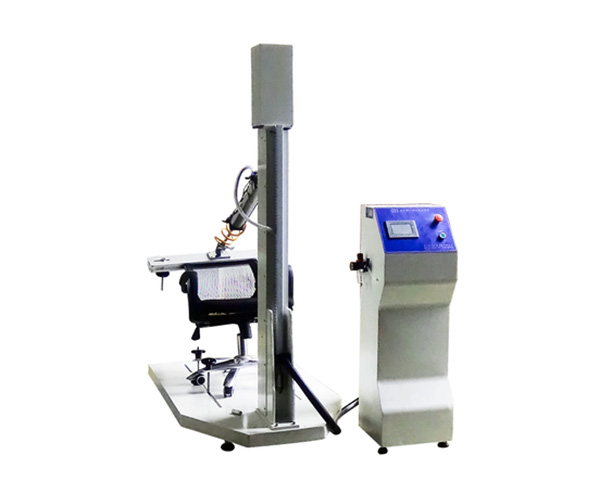

Chair Durability Testing Equipment

Chair Durability Testing Equipment

Chair Durability Testing Equipment
