Size |
64*60*100cm |
|
Weight |
About 65Kg |
|
Power |
1∮ AC 220V 50Hz 3A |
Products Name:

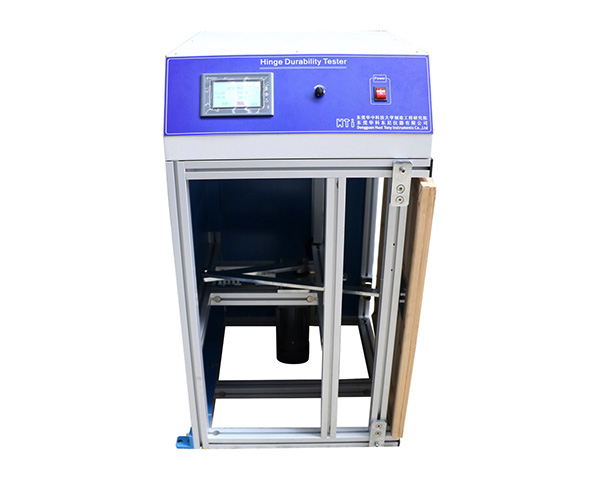

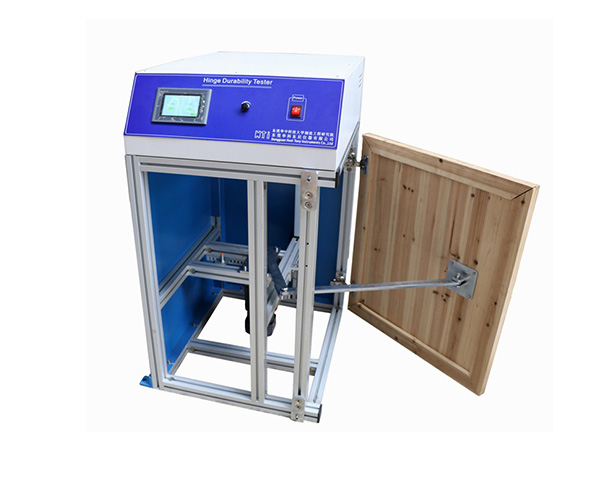

Cabinet Hinge Durability Tester
Application:
Cabinet Hinge Durability Tester is suitable to test goblet dark hinge and its installed base capability. Install a couple hinge on the tester and test door, test the shut force, durability, resistance to overranging.
Control cabinet: Electric control components and control panel.
Power sensor: Sense the strength of shut force and resistance to overranging.
|
Door |
Height: 700mm |
|
Wide: 600mm |
|
|
Thickness: 19mm |
|
|
Weight: 6kg |
|
|
Durability test |
40000 times |
|
18 times/min |
|
|
Transfinite test |
Force value: 50N |
|
Number: 5 times |
