Weight |
180kg |
|
Power |
220v 50/60HZ |
|
Standard |
UL94, IEC60695, GB5169 |
|
Package |
Wooden Box |
|
Supply Ability |
10 sets per month |
Products Name:

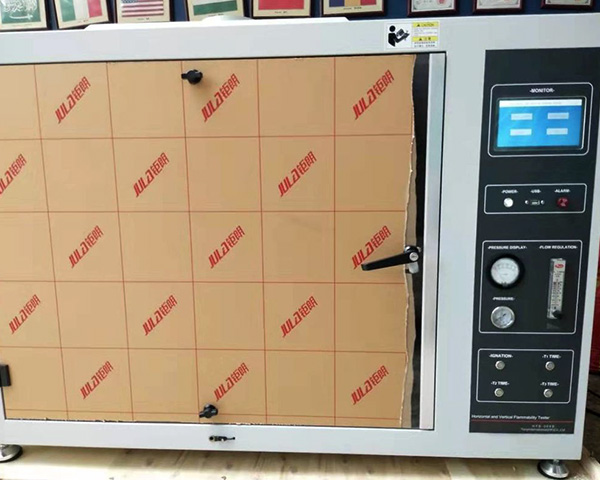

Touch Screen Horizontal & Vertical Flammability Tester
Features:
Vertical Flammability Tester
Application:
Test the flammability of the plastic material spare part in appliances. Flammability, combustion speed, flame spread, the intensity of combustion can be acquired during test automatically and precisely.
|
Combustion chamber |
0.7 CBM |
|
Time adjustment of continuous flame |
0~99 minutes99 seconds |
|
Time adjustment of after flame |
0~99 minutes 99 seconds |
|
Time adjustment of after glow |
0~99 minutes 99 seconds |
|
Flame height |
From 20mm to 175mm according to the standard |
|
Timer |
0~999.9s+/-0.1 s (adjustable) |
|
Burn angle |
0°, 20°,45° adjustable |
|
Gas |
98% methane |
|
Temperature testing range |
0~1000 degree |
|
Combustion chamber size |
1350(W)×700(D)×1000(H)mm |
|
Power |
AC 220V, 50/60Hz, 2A |
