| Weight | About 400kg |
| Dimension | 2100x1260x2000mm |
| Power | AC380V*3Diameter*2KW |
| Effective Width | Max 1000mm |
| Up And Down Adjustment | Max 300mm |
| Test Speed | 5kw/h±0.1kw/h (adjustable) |
| Package | Plywood box |
| Supply Ability | 15 sets per month |
Products Name:

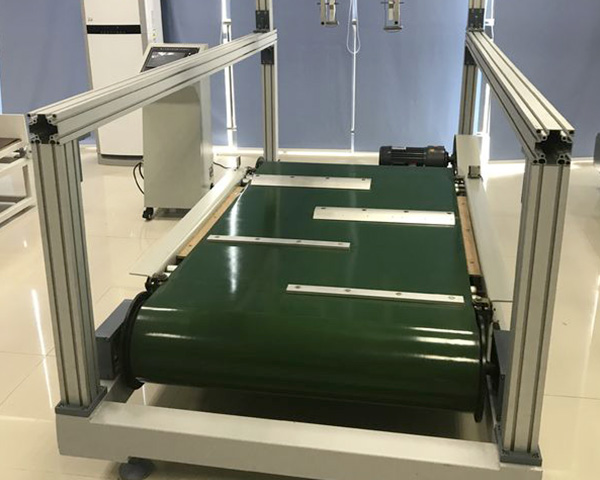

Dynamic Durability Strollers Testing Machine
Application:
This machine is designed according to CNS baby-car dynamic abrasion durability test regulations.

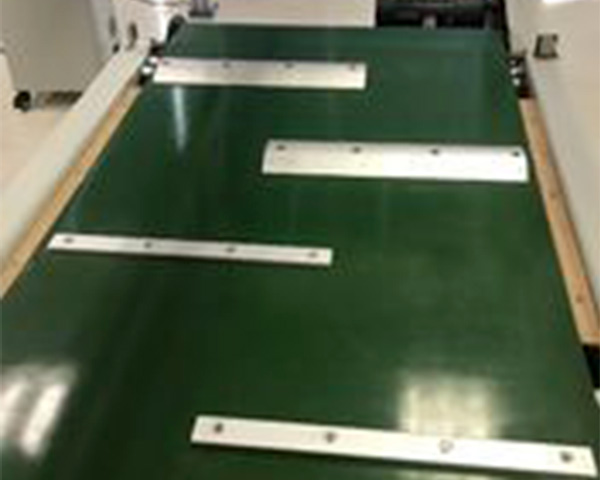

Method: place a baby mode in the car, and fix the car on the test table, adjust the speed of the conveyor belt to 1.4±0.1m/sec. Check whether the car is damaged, after keeping it for 64 hours. When reaching the setting times, it will stop automatically. It is assembled with light sensor, which can prevent damage of the machine when the baby-car is out of control.
It used to test the dynamic durability of wheel and the whole car when simulate the moving on the road.
|
Experiment work |
Single-seater body(front and rear) |
|
Drive mode |
Roller wheel drives the rubber conveyor belt for moving and the driven by special aluminum alloy conveyor belt |
|
Drive horsepower |
AC380V*3diameter*3HP |
|
Up and down adjustment |
Max 300mm |
|
Effective width |
Max 1000mm |
|
Test count |
LCD digital display with six digits |
|
Bearing load |
Max 50 pounds |
|
Shape of impact block |
Trapezium, half arc or specified |
