Batch Foam Machine

Batch Foam Machine

Polyurethane Automatic Batch Mattress Sponge Foam Making Machine

Type  Foam Machine
Dimensions  W10m*L10m
Power  35KW
Voltage  3phase, 380V/220V, 50/60HZ
Certification  ISO9002
Application  Foam Industry, Sponge Industry, Furniture Industry
Supply Ability  20 Sets Per Year
Contact us
Products Description

Products Name:

Polyurethane Automatic Batch Mattress Sponge Foam Making Machine

Features:

Foam/Sponge producing machine with pneumatic motion, which can be used with Rectangular, Cubic and Cylindrical Molds.

The speed of the Mixer can be controlled electronically from control panel. All 7kinds Raw-Materials are put in to the Tank automatically.

Its products used in Bed, Furniture and all kind Sponge Producing Factories.

Standard Equipment
Rated Power  50kw
Mixing Motor Power  11kw
No-Load Rotational Speed  3000r/min
Saw Blade Diameter  0.2 mm
Max Cutting Depth  0.2 mm
Produce  Min 96 blocks/8hours
Foaming Density Range  8-70kg/CBM
Hydraulic System  Tanks Mixing Automatic
Package  Wooden Box & Hard Paper Film Packing
Applicable Industries  Hotels, Restaurant, Home Use
Specifications

Mixing Tank Capacity:



180L~250L



Mixer Total Power:



11KW

Mixing Speed:



2800r~4200r/min



Save Formular Q.T.Y.:



20 Groups.

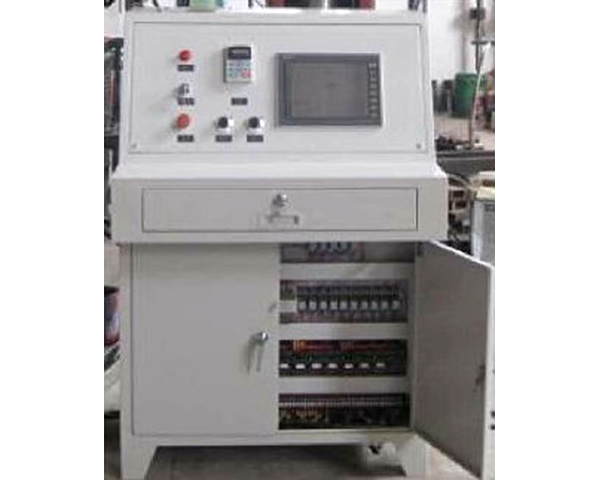

Control System:



PLC Touch Screen Control System



PPG Tank:



3 Ton*1 Set.



POP Tank:



3 Ton*1 Set.



TDI Tank:



2 Ton*1 Set.



MC Tank:



1 Ton*1 Set.



Air Valves:



Euro Standard



Auto Loading Pumps For PPG, POP, TDI, MC:

4 Sets

T-9, Silicone, Amine, Water Tanks:



4 Sets
