Products Name:

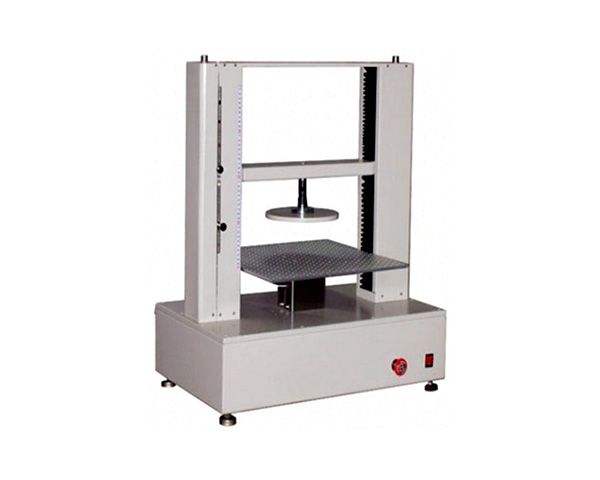

Foam Compression Hardness Tester
Application:
Used to test the stretch, compress, bend, low cycle fatigue of metal andnonmetal, high polymer material etc.
Foam compression hardness tester can be programmed according to customer’s requirement base on standard GB、ISO、ASTM、JIS、EN etc.
It can get the maximum Test force, breaking power, yield strength, tensile strength, compression strength, flexural strength, modulus of elasticity, elongation, specified elongation stress, set elongation stress, etc.
|
The maximum test capacity |
10KN 20KN 30KN 50KN 100KN |
|
Indicating value relative error at most |
±1% |
|
Displacement relative error |
±1% |
|
Transformation relative error |
±1% |
|
Test range |
1%-100%, no difference between any degree |
|
Displacement speed |
0-500mm/min, displacement speed |
|
Valid test stroke |
0-730mm |
|
Valid test width |
360mm |
|
Resolution ratio |
1/200000 |
|
Control Method |
Strength, shift, transformation |
